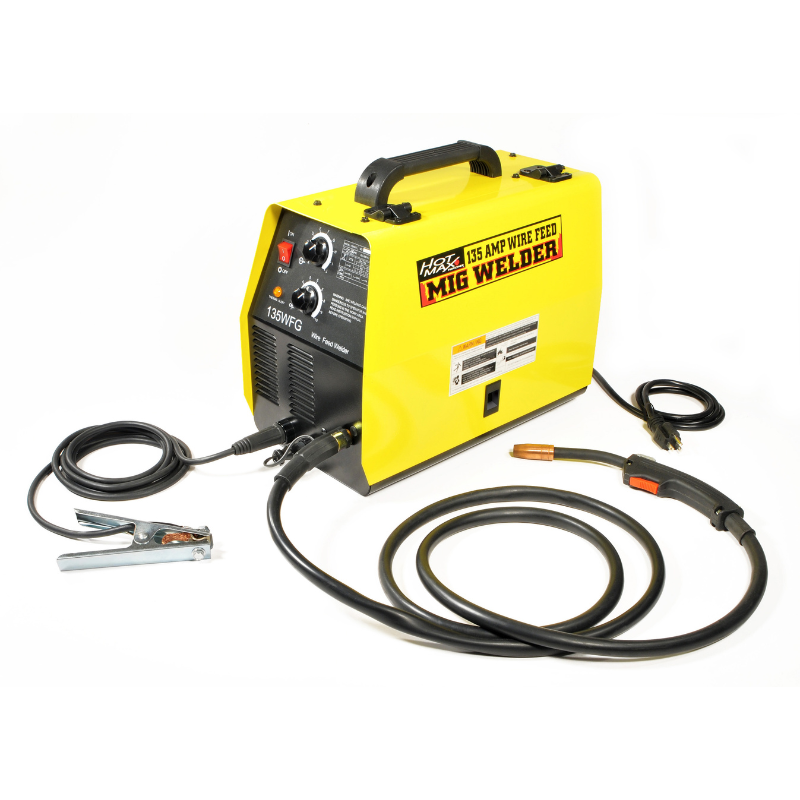

HOT MAX 135 AMP MIG WELDER

Manufactured by KDAR Company, the Hot Max 135WFG MIG Welder is ready to weld with shielding gas or flux core right out of the box.

FEATURES:
Infinite Output Voltage Controls which can be adjusted as you weld!
Infinite Wire Speed Control.
Factory pre-wired and ready for optional Spool Gun (Model #SPG).
Easy polarity change for switching between shielding gas and flux core wire.
Drive roller fits .023” to .035” wire.  Larger drive wheel available.
2 Year Limited Warranty on Machine, 90 Day Warranty on Gun and Hoses, for Parts and Labor.

SPECIFICATIONS:
Input Current/Voltage: 20 Amps at 120 Volts, Single Phase
Output:  25-135 Amps DC
Minimum Duty Cycle: 20%
Welds up to 5/16” with Flux Core Wire

WELDER INCLUDES THE FOLLOWING COMPONENTS:
Ground Clamp with 9’ Cable
MIG Gun with 10’ Hose
CO2/Argon Regulator with 5’ Hose
2# Spool of .030” Flux Core Wire
Gas Nozzle for MIG Welding
Hex Wrench for wire feed roller
.025”, .030”, and .035” Contact Tips
10# Wire Spool Adapter
Shielding gas is NOT included.

Manual for HOT MAX 135 MIG Welder: 135WFG Manual Rev 6 March 2016
